What is Bitmask

A Bitmask is a type of annotation on Datature Nexus that allows for pixel-wise segmentation of an image. This method is particularly useful when:

• Bounding boxes and polygons lack precision
• Topologically separate regions belonging to the same class need to be labeled

Difference Between Bitmask and Polygon Annotations

Polygon vs. Bitmask Annotations

Polygon Annotations:

• Based on outline and vertices
• Support disjointed islands with additional grouping
• Do not support holes within annotations

Bitmask Annotations:

• Provide pixel-level control
• Support non-contiguous regions naturally
• Allow holes within annotations
• Cannot be mixed with polygon annotations in the same project

Working with Bitmask Annotations

Creating Bitmask Annotations

Project Setup:

Datature Nexus does not currently support mixing bitmask and polygon annotations. Select the "Bitmask" option when creating a project to access dedicated tools for this annotation type.

Annotation Tools:

Projects with bitmask annotations provide specialized tools like Paintbrush, Freedraw, Magnetic Lasso, and Magic Fill.

Editing Bitmask Annotations

Selecting Annotations:
Click on an existing bitmask object to select it. A bounding box will appear around the object. Use editing tools (e.g., Paintbrush, Freedraw) to modify the selected annotation

📘

For overlapping bitmask annotations, only the topmost object will be selected. Use the bring forward/bring back functionality to access underlying objects.

Editing Workflow:

• Toggle between drawing and erasing modes using the y key.
• Undo/redo actions with Ctrl + Z or Ctrl + Shift + Z.
• Commit changes by pressing Space, or abort by pressing Esc.

Related Tools for Bitmask

Paintbrush

How to use:

• Left-click and drag to annotate
• Adjust brush size using [ and ] keys
• Toggle between draw and erase modes with 'y' key
• Undo/redo with ctrl + z and ctrl + shift + z
• Commit annotation with spacebar, abort with escape key

Draw with Polygon Vertices

How to use:

• Place vertices with left-click
• Straight line edges automatically generated
• Remove last point or close loop as needed
• Annotations outside image bounds will be clipped

Freedraw

How to use:

• Left-click and drag to outline region
• Area within draw stroke automatically filled
• Switch between draw and erase modes
• Undo/redo functionality available
• Commit or abort annotation similar to paintbrush

Magnetic Lasso

How to use:

• Click points along object edges
• Edge detection algorithm assists annotation
• During the annotation process, undo or adjust the last / previous step’s checkpoint by clicking at it

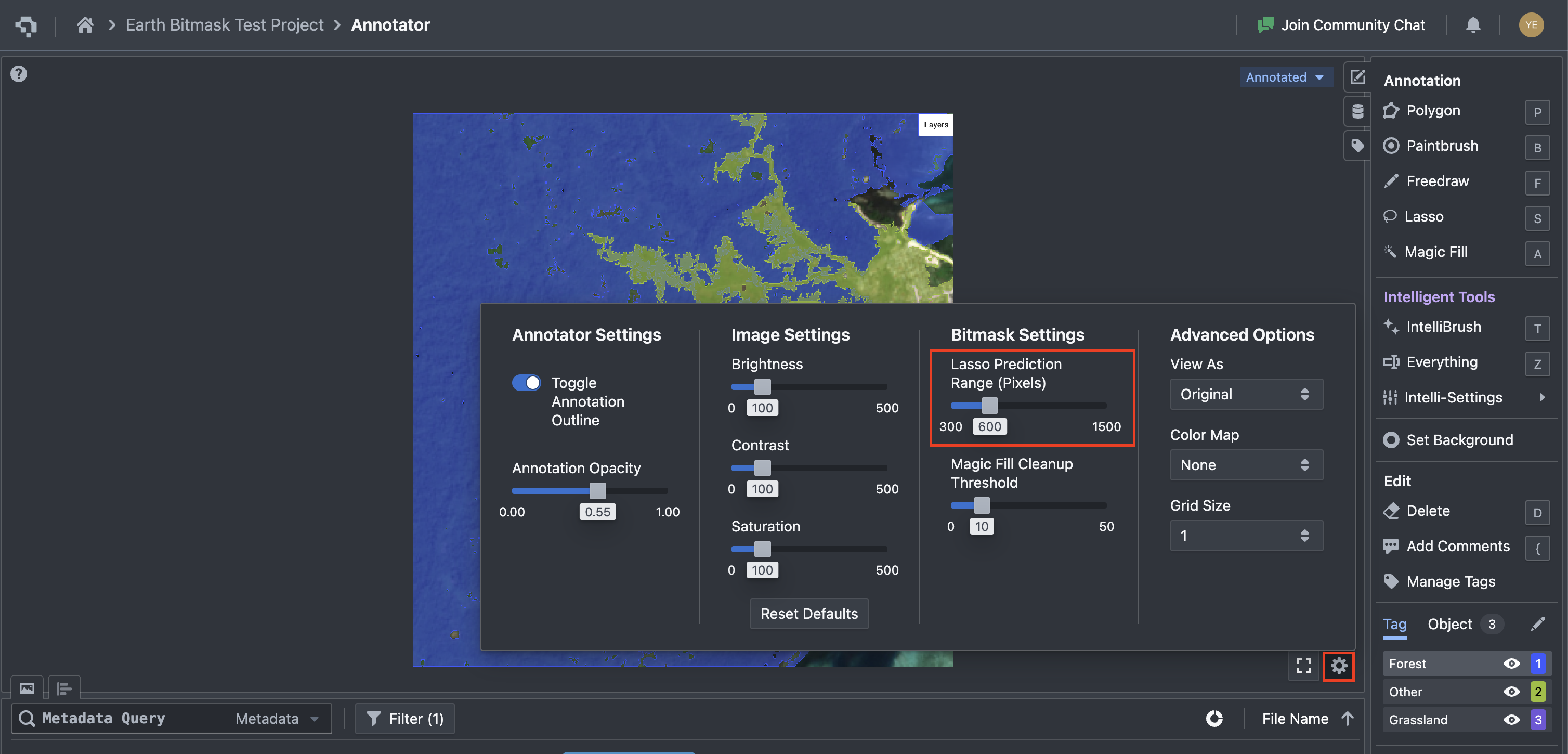

• Adjust prediction range via ‘Settings’ > Lasso Prediction Range (Pixels): Set prediction range for Lasso-based segmentation.

Magic Fill

How to use:

• Create annotations from homogenous image patches
• Flood algorithm based on pixel-to-pixel color difference
• Control fill area through dragging motion
• Toggle fill/erase modes
• Clean up small holes and stray patches automatically

Common Questions

How do I select overlapping bitmask objects?

Clicking selects the topmost object at a given pixel location. Use "Bring Forward/Bring Back" functionality to adjust stacking order for selection.

How do I choose the right annotation tool?

• Paintbrush: For precise, pixel-level control
• Polygon Vertices: When you need straight-edge boundaries
• Freedraw: For quick, freeform annotations
• Magnetic Lasso: For objects with well-defined edges
• Magic Fill: For large, uniform color regions

How can I improve annotation accuracy?

• Use multiple tools in combination
• Adjust brush size and threshold carefully
• Utilize the cleanup feature for refined results

How do I adjust Magic Fill responsiveness?

Hold down the Alt key while dragging to increase flood responsiveness for larger fills.

What if Magic Fill creates small holes or stray patches?

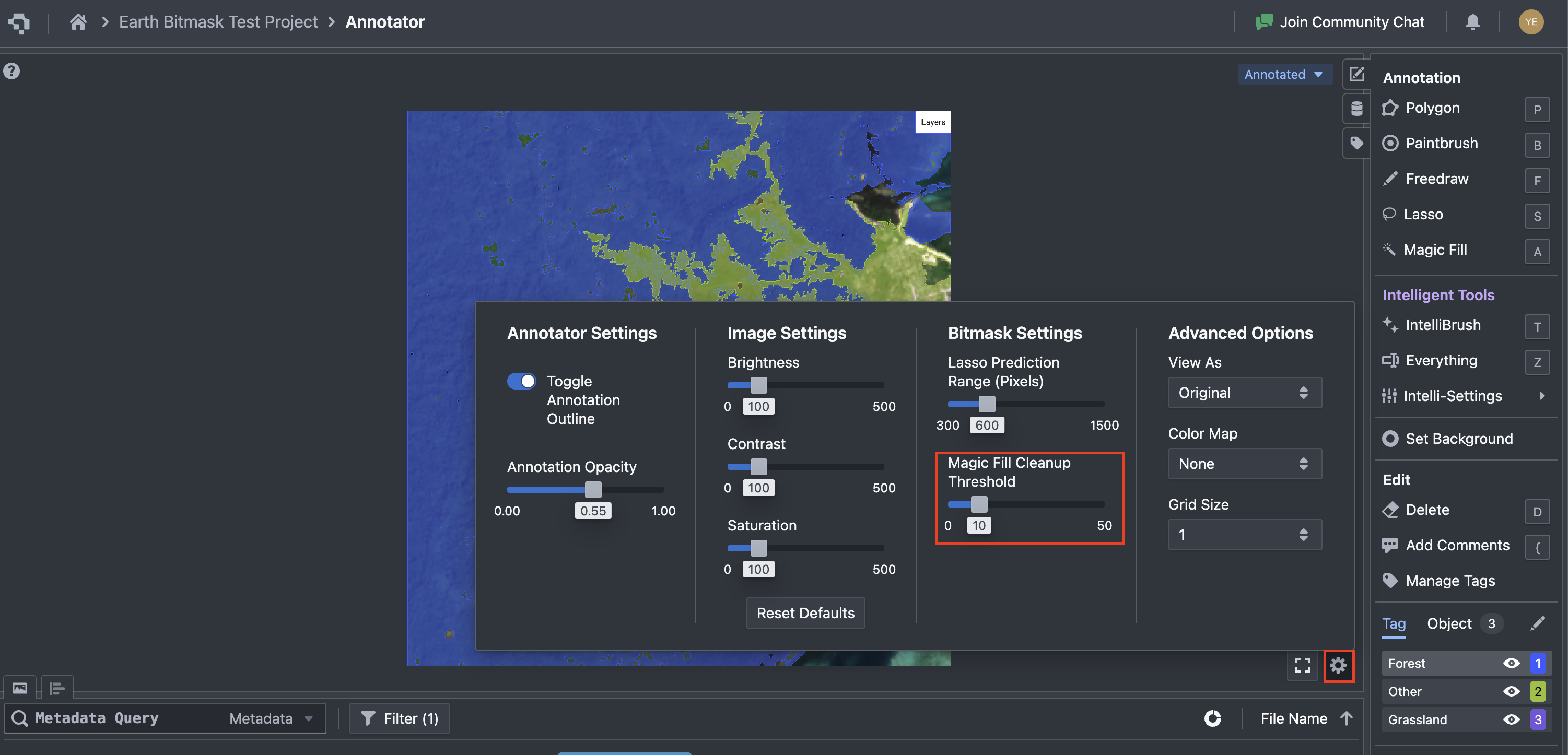

Use the "Clean Up" button in Annotation Settings to remove stray patches and fill small holes automatically.

---
